Heater Ducting ID vs OD: How to Measure 60mm, 65mm, 75mm and 90mm Duct Hose
Heater ducting size errors are common in diesel heater, parking heater, RV heater and marine heater systems. One buyer may ask for 60mm heater ducting, while another may describe the same hose as 65mm heater ducting because one measurement refers to inside diameter and the other refers to outside diameter. This difference can cause wrong hose selection, loose connections, difficult installation and mismatched reducers or outlet grilles.
The most important rule is simple: warm air ducting is usually selected by ID, or inside diameter, because ID controls the air passage and must match the heater outlet, adaptor, vent or reducer. OD, or outside diameter, includes the ducting wall and may change according to material structure, insulation layer, outer film or reinforcement.
BSTFLEX supplies heater ducting, APK warm air ducting, PAP hot air ducting, insulated diesel heater ducting and heat protection tube products for vans, RVs, boats, trucks, heater kits and OEM warm air systems.

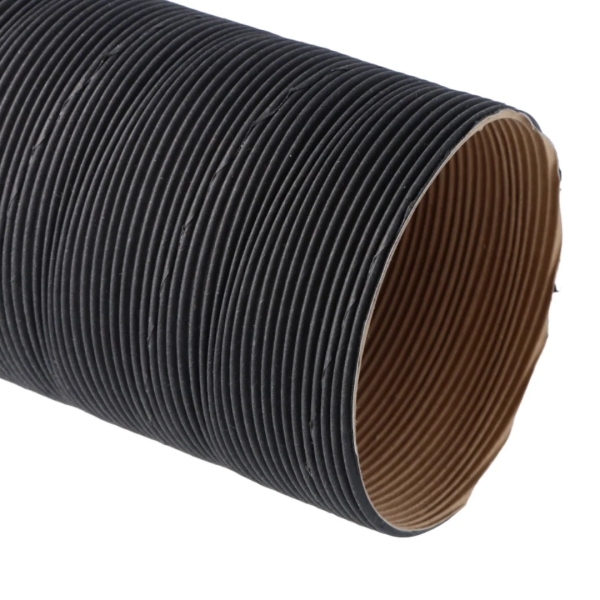

What Do ID and OD Mean in Heater Ducting?
ID means inside diameter. It is the internal air passage of the duct hose. In heater systems, ID is usually the most important measurement because it determines whether the ducting fits the heater outlet, air vent, reducer, Y branch or adaptor.
OD means outside diameter. It is the external diameter of the complete duct hose. OD includes the duct wall and any outer surface layer. For insulated heater ducting, OD also includes the insulation layer, so the outside diameter may be much larger than the air passage size.
| Measurement | Meaning | Why It Matters | Common Buyer Mistake |
|---|---|---|---|
| ID | Inside diameter of the ducting air path | Must match heater outlet, reducer, adaptor or air vent connection | Buyer measures outside and orders the wrong nominal duct size |
| OD | Outside diameter including wall, outer layer or insulation | Determines whether the hose fits through panels, holes, cabinets or clips | Buyer assumes OD equals ducting size and ignores internal air passage |

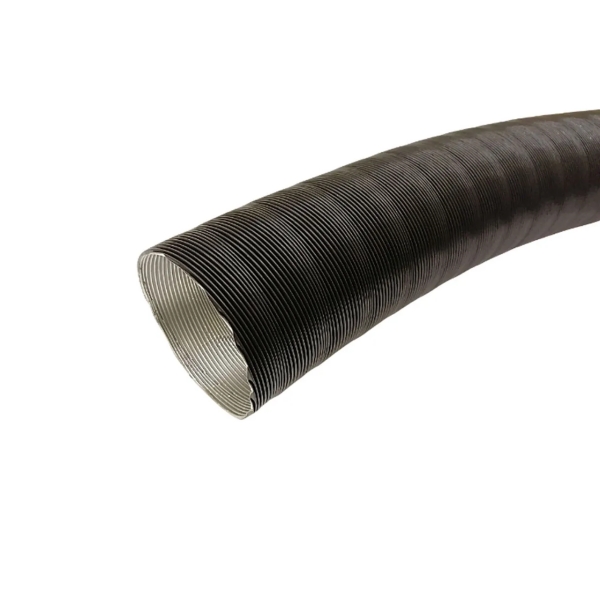

Why 60mm and 65mm Heater Ducting Are Often Confused
The 60mm and 65mm size confusion usually happens because buyers measure different parts of the ducting. A duct hose may have an internal air path close to 60mm while the outside body is larger because of wall thickness, spiral shape, outer layer or protective surface. If the buyer measures the outside and calls it 65mm, but the supplier quotes 65mm inside diameter, the final product may be too large for the original heater outlet.
For this reason, all B2B orders should state whether the size is ID or OD. When the ducting connects to a heater outlet, reducer, adaptor or outlet grille, ID should be confirmed first. When the ducting passes through a hole, panel, clip or narrow cabinet space, OD should also be checked.
Use ID When You Are Confirming:
- Heater outlet connection size
- Air vent or outlet grille size
- Reducer or adaptor compatibility
- Y branch connector size
- Replacement duct hose for an existing heater system
- Warm air ducting airflow path
Use OD When You Are Confirming:
- Whether the ducting fits through a floor hole or wall opening
- Available space behind panels, seats or cabinets
- Final size after insulation is added
- Clip, bracket or mounting clearance
- Packing space for fixed-length heater kits
- Outer surface clearance near other components
How to Measure Heater Ducting Correctly
Correct measurement should start from the connection point, not from the product name. Use a caliper or accurate ruler if possible. If you only have the old hose, measure both inside diameter and outside diameter, then send photos to the supplier.
| Step | What to Measure | How to Measure | Why It Matters |
|---|---|---|---|
| 1 | Heater outlet OD or connector size | Measure the part where the ducting will slide over or connect | This confirms the required ducting ID or adaptor size |
| 2 | Original ducting ID | Measure the internal diameter of the old hose opening | This is the main reference for replacement ducting |
| 3 | Original ducting OD | Measure the outside body of the hose | This confirms routing clearance and wall thickness range |
| 4 | Outlet grille or vent connection | Measure the air outlet, vent neck or branch connector | All connected parts must match the ducting size |
| 5 | Route length | Measure the path from heater outlet to final air outlet | Correct length reduces waste, leakage and installation stress |
| 6 | Available clearance | Check holes, panels, cabinets, bends and installation space | Important for insulated ducting and larger sizes such as 90mm |

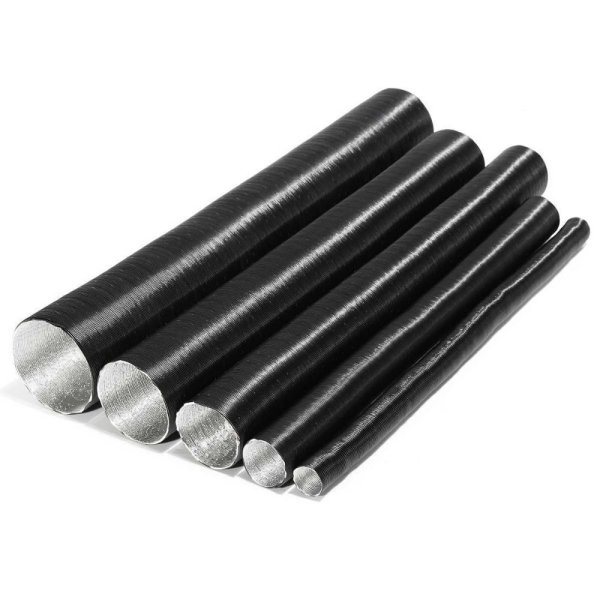

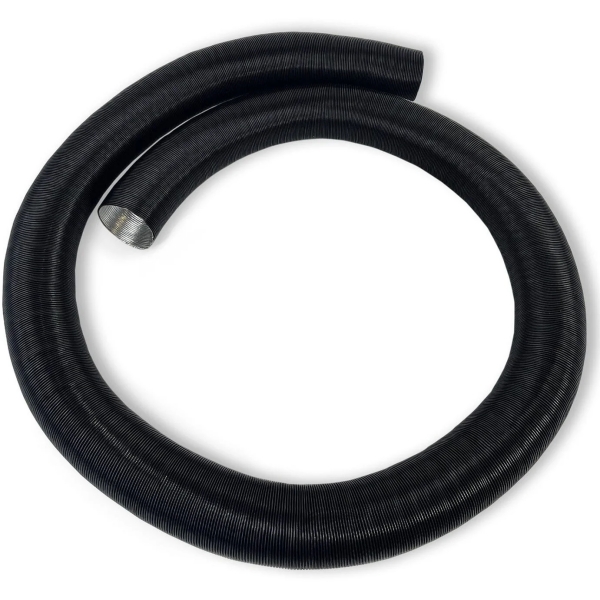

Common Heater Ducting Sizes and Measurement Notes
Common warm air ducting sizes include 50mm, 60mm, 65mm, 75mm, 80mm, 90mm, 100mm and 102mm. Some sizes are true inside diameter sizes, while others may be used by buyers as outside diameter descriptions. Always confirm the measurement basis before quoting.
| Size Term | Possible Meaning | Typical Application | What to Confirm |
|---|---|---|---|
| 50mm heater ducting | Usually refers to inside diameter | Compact heater systems and small cabin routes | Confirm heater outlet and vent connection size |
| 60mm heater ducting | Usually refers to inside diameter | Vans, RVs, boats and compact diesel heater systems | Check whether the buyer measured ID or outer body |
| 65mm heater ducting | May refer to OD, connector OD or special ID depending on market | Replacement ducting, adaptors and installation parts | Ask whether 65mm is ID, OD or adaptor size |
| 75mm heater duct hose | Usually refers to inside diameter | Medium warm air systems, RVs, trucks and marine heater systems | Confirm outlet grille, reducer and branch connector size |
| 80mm warm air ducting | Usually refers to inside diameter | Medium to larger heater systems and cabin air distribution | Check route clearance and bend space |
| 90mm diesel heater ducting | Usually refers to inside diameter | Large heater systems, boats, RVs and high airflow routes | Confirm bend radius, connector and final OD |
| 100mm heater ducting | Usually refers to inside diameter | High airflow warm air systems and OEM heater layouts | Check reducer, outlet and packaging requirements |
| 102mm heater ducting | May be a metric equivalent or market-specific size | Replacement systems, large outlets and special ducting projects | Confirm original sample or drawing before production |
60mm Heater Ducting: What to Check
60mm heater ducting is one of the most common warm air hose sizes for compact diesel heater installations. It is widely used in vans, RVs, small boats, cabins and auxiliary heater systems. When ordering 60mm ducting, confirm whether 60mm is the inside diameter of the hose, the outside diameter of a connector or the nominal size used by the buyer.
- Measure the heater outlet and original ducting ID.
- Check whether the outlet grille also uses a 60mm connection.
- Confirm whether the ducting is standard, APK, PAP or insulated structure.
- For insulated ducting, confirm final OD after insulation.
65mm Heater Ducting: Why This Size Needs Careful Confirmation
65mm heater ducting is often a source of confusion. In some purchasing conversations, 65mm may describe the outside diameter of a hose that has a smaller internal air path. In other cases, it may be a real connector size or special ducting ID. A supplier should not assume the meaning without confirmation.
If a buyer asks for 65mm ducting, the safest response is to request a photo, original sample, heater outlet measurement and clarification of ID or OD. This avoids supplying ducting that is too large or too small for the heater system.
When a Buyer Requests 65mm Ducting, Ask:
- Is 65mm the inside diameter or outside diameter?
- Is the ducting fitting over a connector, into an adaptor or onto a heater outlet?
- What is the old hose ID and OD?
- Is an insulation sleeve required?
- Does the installation use a reducer or outlet grille?
- Can the buyer provide a sample or installation photo?
75mm Heater Duct Hose: Outlet and Reducer Compatibility
75mm heater duct hose is commonly used for medium warm air systems in RVs, vans, trucks, boats and heater kits. It may connect to outlet grilles, branch connectors, reducers and adaptors. Because 75mm systems often use more accessories, the buyer should confirm all connected parts before ordering.
If the ducting connects to a reducer, for example 90mm to 75mm, both sides of the reducer must be checked. If the ducting is too stiff or too thick at the wall, installation may become difficult even if the nominal ID is correct.
90mm Diesel Heater Ducting: Space and Bend Route Matter
90mm diesel heater ducting is used for larger warm air systems, marine cabins, RVs and high airflow heater layouts. Because the ducting body is larger, routing space becomes more important. If insulation is added, the final outside diameter may require even more clearance.
- Confirm the heater outlet ID and the vent or branch connector size.
- Check whether the route has enough room for larger ducting.
- Confirm bend radius and avoid sharp compression.
- For insulated 90mm ducting, check final outside diameter before production.
ID vs OD for Insulated Heater Ducting
Insulated heater ducting requires special attention because insulation changes the outside diameter but does not change the internal air passage if the base duct ID remains the same. A 60mm insulated ducting product may still have a 60mm air path, but the final OD can be much larger depending on insulation thickness.
| Specification | What It Means | Why It Must Be Confirmed |
|---|---|---|
| Base Duct ID | Internal air passage of the ducting | Determines heater outlet and airflow compatibility |
| Base Duct OD | Outside diameter before insulation | Useful for comparing standard ducting and wall structure |
| Insulation Thickness | Thickness of foam, felt or other insulation layer | Affects final outside diameter and routing clearance |
| Final OD | Outside diameter after insulation and outer layer | Determines whether the ducting fits through holes, panels and cabinets |
How Reducers, Adaptors and Y Branches Affect Size Selection
Heater ducting is rarely installed alone. It often connects to reducers, adaptors, Y branches, outlet grilles and clamps. These components can change the required ducting size. A buyer may have a 90mm heater outlet but a 75mm cabin outlet after a reducer, or a 60mm branch line after a larger main duct.
| Component | Size Risk | Recommendation |
|---|---|---|
| Reducer | One side may be larger than the other, such as 90mm to 75mm | Confirm both inlet and outlet side dimensions |
| Y Branch | Main duct and branch ducts may use different sizes | Measure each connection point separately |
| Outlet Grille | The vent neck may not match the heater outlet size | Confirm outlet neck ID or OD before ordering ducting |
| Adaptor | Adaptor size may be described by outside neck diameter | Clarify whether the hose fits over or inside the adaptor |
| Clamp | Clamp range must match final outside diameter | For insulated ducting, check final OD before selecting clamp |
Best Measurement Information to Send for a Quotation
For custom heater ducting, photos and measurements reduce mistakes. A clear quotation should include ID, OD, length, structure, application and packaging details.
- Required inside diameter of the air path
- Outside diameter of existing duct hose, if available
- Heater outlet measurement
- Outlet grille, reducer or adaptor measurements
- Required ducting length or roll length
- Material structure: APK, PAP, aluminum foil or insulated ducting
- Whether insulation is required and final OD limitation
- Application: van, RV, boat, truck, cabin or OEM heater kit
- Packaging: bulk roll, cut length, private label or OEM kit packaging
- Photos, drawings or original samples if available
Common Purchasing Mistakes
Most heater ducting size mistakes come from unclear measurement language. Terms such as 60mm, 65mm, 75mm and 90mm are useful only when the buyer confirms whether the number refers to ID, OD or a connector size.
- Using OD as the ordering size: this may lead to a ducting ID that does not fit the heater outlet.
- Not measuring the outlet grille: the heater outlet and final vent may use different sizes.
- Forgetting reducers and adaptors: these parts can change the required hose size.
- Ignoring insulated OD: insulation increases final outside diameter and may affect routing clearance.
- Ordering only by heater model: installation kits and connected parts may vary.
- Not providing photos: pictures help identify whether the hose fits over or inside a connector.
Use Together With Related BSTFLEX Products
Correct ducting measurement is important for all warm air ducting and heat protection products. These related pages support the same C11 product cluster and should be linked together.
- Aluminized Heat Protection Tube and Warm Air Ducting for APK ducting, PAP ducting, heater duct hose and heat protection tube products.
- Diesel Heater Ducting Sizes for 50mm, 60mm, 75mm, 80mm, 90mm and 100mm size selection.
- APK Warm Air Ducting Manufacturer for custom APK ducting, bulk supply and OEM heater duct hose.
- Insulated Diesel Heater Ducting for heater duct insulation sleeves and insulated APK ducting.
- Aluminum Foil Corrugated Tube for flexible air routing and heat reflective duct protection.
Request Custom Heater Ducting by ID and OD
BSTFLEX manufactures heater ducting, APK warm air ducting, PAP hot air ducting, insulated diesel heater ducting and heat protection tube products according to confirmed inside diameter, outside diameter, length, structure and packaging requirements.
- 50mm, 60mm, 65mm, 75mm, 80mm, 90mm, 100mm and custom ducting sizes
- Custom ID for heater outlet, vent, reducer or adaptor compatibility
- OD control for panel holes, brackets, clips and insulation clearance
- APK, PAP, aluminum foil and insulated ducting structures
- Cut-to-length pieces, bulk rolls and OEM heater kit packaging
- Private label, printed marking and batch production available
Conclusion
Heater ducting ID and OD are not the same. ID controls the internal air path and must match the heater outlet, adaptor, reducer or outlet grille. OD controls the external clearance and becomes especially important when the ducting passes through panels, cabinets or insulated routes.
For sizes such as 60mm, 65mm, 75mm and 90mm, always confirm whether the number refers to inside diameter, outside diameter or connector size. BSTFLEX can manufacture custom heater ducting by confirmed measurements, material structure, insulation requirement and packaging method.
View the full product series here: BSTFLEX Heater Ducting and Warm Air Ducting Products.
FAQ: Heater Ducting ID vs OD
What does ID mean in heater ducting?
ID means inside diameter. It is the internal air passage of the ducting and is usually the most important size for matching the heater outlet, vent, reducer or adaptor.
What does OD mean in heater ducting?
OD means outside diameter. It includes the ducting wall, outer layer and any insulation layer. OD is important for checking routing clearance, panel holes, clips and installation space.
Why are 60mm and 65mm heater ducting sometimes confused?
The confusion often happens because one measurement may refer to inside diameter while another may refer to outside diameter or connector size. Buyers should confirm whether 60mm or 65mm means ID, OD or adaptor dimension.
Should I order heater ducting by ID or OD?
For airflow and connection compatibility, order by ID. For routing clearance, mounting clips and insulated ducting clearance, also confirm OD.
Does insulated heater ducting change the outside diameter?
Yes. Insulation increases the final outside diameter. A ducting hose may keep the same internal air path while becoming larger outside after insulation is added.
What information should I send for custom heater ducting?
Please send inside diameter, outside diameter if available, heater outlet size, ducting length, material structure, insulation requirement, packaging method, application photos and quantity.
