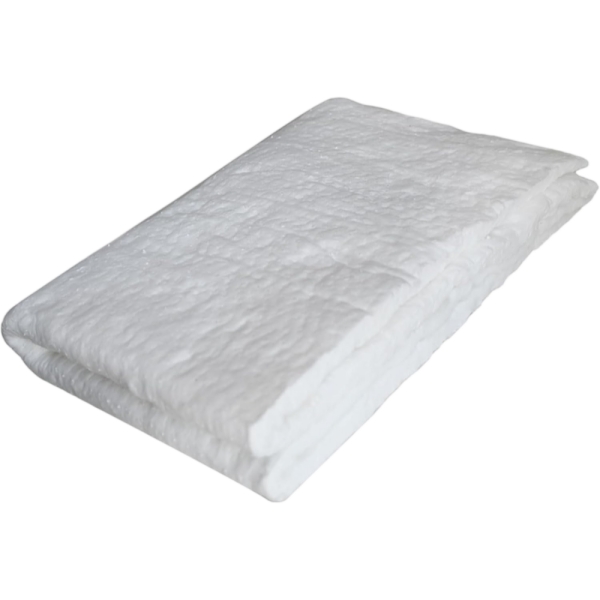

Fiberglass Muffler Packing Mat: Thickness, Areal Weight and Cut Pattern

Fiberglass muffler packing mat should be purchased by more than thickness alone. For repeat exhaust silencer production, the buyer also needs to define material construction, mass per unit area, cut dimensions, installed quantity and the way each piece fits around the perforated core.

A 10 mm mat from one specification is not automatically equivalent to another 10 mm mat. The two materials may contain different amounts of glass fiber, use different binders or fiber structures, and require different cut areas to deliver the approved filling weight.

BSTFLEX supplies Fiberglass Exhaust Muffler Packing with customizable dimensions and also offers Fiberglass Exhaust Silencer Packing for mat- and sheet-based silencer assembly. This guide focuses on turning those materials into a repeatable OEM cutting and purchasing specification.

Do Not Specify a Muffler Packing Mat by Thickness Alone

Thickness is useful for checking fit, but it does not tell purchasing how much fiberglass is present in a sheet.

For a complete fiberglass exhaust packing mat specification, define at least:

• glass fiber grade;
• fiber or mat construction;
• nominal thickness;
• thickness measurement condition;
• mass per unit area;
• sheet or roll width;
• cut length;
• dry material weight per silencer;
• binder, stitching or other incorporated material where applicable;
• permitted cutting and joining method.

This separates three questions that are often mixed together: how thick the material is, how much material is contained in a given area, and how much material the finished muffler requires.

Thickness and Areal Weight Describe Different Properties

A muffler packing mat can be described by thickness in millimeters and by areal weight in grams per square meter. These values are related to the material construction, but one cannot be calculated reliably from the other without additional information.

Specification	What It Describes	Why Purchasing Needs It
Thickness	The nominal depth of the mat under a defined measurement condition.	Helps evaluate initial fit, layer count and available clearance.
Areal weight	The mass of material per unit area, commonly expressed in g/m2.	Allows a cut-piece weight to be calculated from its area.
Piece dimensions	The usable width and length of one cut component.	Determines coverage and total supplied area.
Piece weight	The material mass contained in one cut component.	Provides a measurable production and receiving-inspection value.
Installed density	The approved fiber mass divided by the net volume allocated to the packing.	Helps control the complete installed packing specification.

Do not use nominal thickness as a substitute for filling weight. Two mats can appear equally thick when relaxed but contain different amounts of fiberglass.

Define How Thickness Is Measured

Fibrous material can compress easily. A thickness measurement therefore needs a defined condition.

Ask whether the value refers to:

• free or relaxed thickness;
• thickness under a specified measuring load;
• compressed shipping thickness;
• or installed thickness inside the silencer.

These values should not be treated as interchangeable.

For an OEM drawing, use the measurement condition agreed during sample approval. If a production inspector uses a different compression force from the supplier, the same acceptable mat may produce a different measured thickness.

Use Areal Weight to Calculate a Cut-Piece Weight

When the material has a defined areal weight, the nominal material weight in one rectangular piece can be calculated from:

Cut-piece weight = width × length × areal weight.

When width and length are entered in meters and areal weight is expressed in g/m², the result is in grams.

For example only, assume an approved material has:

• width: 0.35 m;
• cut length: 0.50 m;
• areal weight: 800 g/m².

The nominal piece weight would be:

0.35 × 0.50 × 800 = 140 g.

These numbers are calculation examples only. They are not standard BSTFLEX product specifications or recommended muffler filling quantities.

Also confirm whether the quoted areal weight refers to glass fiber alone or the complete mat including binder, stitching or other constituents.

Start the Cut Pattern from the Silencer Geometry

A useful custom cut muffler packing drawing begins with the internal assembly rather than with the available stock-sheet size.

Provide:

• perforated core outside diameter;
• internal shell dimensions;
• effective packed length;
• core position;
• end clearances;
• partitions or stepped sections;
• metallic liners or retaining layers;
• insertion direction.

The cut pattern should show how the material enters the silencer and where its seam or overlap will be located.

For a simple cylindrical design, one rectangular sheet may be sufficient. For oval, offset-core or stepped silencers, multiple pieces or a shaped cut pattern may provide better control.

Butt Joint or Overlap?

The seam arrangement affects material quantity and local thickness.

A butt joint places the two cut edges together without intentional overlap. An overlap places one part of the mat over another, increasing the amount of material in that local area.

Do not leave this decision entirely to the assembly operator. If overlap is required, define:

• overlap width;
• overlap location;
• whether the joint is staggered between multiple layers;
• and whether the overlap is included in the approved filling weight.

A production line should not compensate for a short sheet by increasing overlap elsewhere or compensate for an oversized sheet by removing an unmeasured strip.

Single-Layer and Multi-Layer Cut Patterns

Some silencers can be packed with one mat layer. Others may use multiple layers because of the required material quantity, geometry or approved packing construction.

When more than one layer is used, identify each piece on the cutting drawing. A specification such as "two layers of fiberglass" is incomplete if the layers use different sizes, joint positions or materials.

For example, an assembly instruction may identify:

• inner mat piece;
• outer mat piece;
• end-fill pieces;
• and any separate metallic core-side component.

Keep these component weights separate when possible. That makes later engineering changes easier to evaluate.

Cutting an Oval or Offset-Core Silencer

An oval shell does not automatically require loose fill. A fiberglass silencer packing mat can still be used if the cut pattern and installation method reproduce the approved distribution.

For an offset core, one side of the chamber may have substantially less radial clearance than the other. A uniform wrap around the core may therefore compress differently after insertion.

During sample development, inspect:

• the narrow side of the cavity;
• the larger pocket;
• the seam area;
• both end zones;
• and any area affected by an internal bracket or partition.

If additional cut pieces are needed to fill specific regions, identify them as separate parts rather than asking operators to add random offcuts.

Do Not Turn Cutting Scrap into an Uncontrolled Packing Charge

Sheet cutting creates offcuts. They belong in production-yield calculations, but they should not automatically be inserted into another muffler.

Separate:

material purchased for the production lot

from

material approved for each finished silencer.

When offcuts are reusable in an approved second part number, document that cutting plan. Otherwise, classify them according to the agreed scrap or recycling procedure.

Adding small pieces simply to avoid waste can change local density and material distribution even when the total muffler weight remains close to target.

Calculate Cutting Yield Before Comparing Sheet Prices

A lower price per square meter does not always create a lower material cost per silencer.

Calculate how many approved pieces can be cut from the actual supplied width and length.

For a rectangular layout:

Material utilization = total approved cut-piece area / purchased sheet area.

The practical result must also consider edge trimming, cutting kerf where relevant, defects and orientation restrictions.

For example, a stock width that appears larger may create more unusable side waste if the approved component dimensions do not nest efficiently.

When requesting an OEM quotation, provide the final cut dimensions so the supplier can compare:

• full-sheet supply;
• roll supply;
• pre-cut rectangular pieces;
• and custom-shaped cut parts.

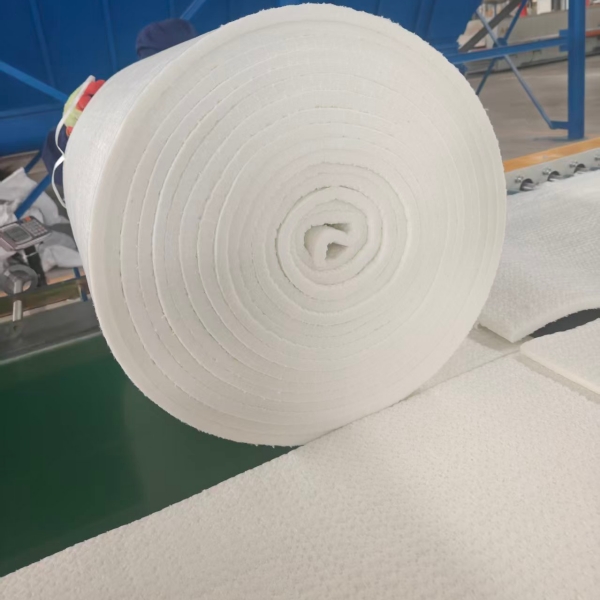

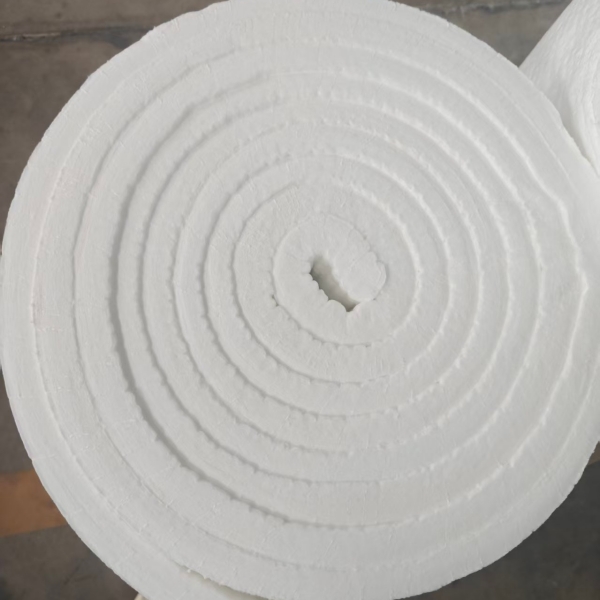

Roll Material vs Pre-Cut Muffler Packing Mats

Purchasing Option	Work Remaining at the Customer	Important Cost Factors
Full rolls	Cutting, identification, scrap management and component weighing.	Roll price, cutting labor, yield and inventory handling.
Standard sheets	Final trimming or cutting into the approved pattern.	Sheet size, usable area and leftover material.
Pre-cut rectangles	Placement and any specified wrapping or fastening.	Piece price, dimensional tolerance and packing quantity.
Custom-shaped pieces	Primarily assembly and inspection.	Cutting method, tooling where required, scrap allocation and order quantity.

The best supply format depends on production volume and existing equipment. A factory with automated cutting may prefer roll material. A line assembling a stable, repetitive silencer may gain better control from individually cut pieces.

Incoming Inspection for Fiberglass Packing Mats

For repeat production, receiving inspection should check values that are directly related to the approved component.

Possible inspection fields include:

• material identification;
• batch or lot reference;
• cut length and width;
• nominal thickness under the agreed method;
• piece weight;
• sheet or mat construction;
• visual damage or contamination;
• pack quantity and labeling.

If areal weight is part of the purchasing specification, agree the sample size and calculation method. A single small test piece may not represent the complete production roll unless the sampling plan says it does.

Do not establish acceptance limits from one randomly selected sample. Agree tolerances during product approval and connect them to the drawing or purchase specification.

Confirm Binder and Support Materials Before High-Temperature Use

A fiberglass mat may be mechanically formed, bonded, stitched or produced through another process. Those constituents can affect handling and initial heating.

Ask the supplier to identify any binder or support material that remains in the product.

Do not apply the glass fiber's maximum temperature directly to:

• an adhesive;
• binder;
• stitching thread;
• temporary assembly tape;
• or the complete finished silencer.

Provide continuous and peak operating conditions with the measurement location when requesting a material review.

Mat Packing Is Different from Heat-Released Expanding Packing

A conventional exhaust packing mat should not automatically be described as self-expanding.

BSTFLEX separately offers an Expanding Exhaust Packing Sheet using a compressed continuous-filament construction with heat-responsive restraint. That product has a specific release mechanism and installation process.

If your current requirement is simply a fiberglass mat with defined thickness and cut dimensions, keep that requirement separate. Do not add heat-release terminology unless the supplied construction actually uses it.

Compare Mats with the Other Fiberglass Supply Forms

BSTFLEX supplies several fiberglass packing directions for exhaust silencers.

For yarn- or continuous-fiber-based filling, review Fiberglass Exhaust Muffler Packing and E-glass Exhaust Silencer Packing.

For a measured filling process, review Fiberglass Loose Fill Muffler Packing.

For OEM assembly requiring contained fiberglass, review the Fiberglass Muffler Packing Sock with Woven Glass Mesh Bag.

The broader choice between yarn, mat and loose fill is covered in the BSTFLEX fiberglass exhaust packing selection guide. This page focuses specifically on making mat supply measurable and repeatable.

What to Put on a Fiberglass Muffler Packing Mat RFQ

RFQ Field	Information to Provide
Application	Motorcycle, ATV, UTV, automotive, performance exhaust or industrial silencer.
Glass material	Required grade or existing approved material reference.
Mat construction	Fiber form and any known binder, stitching or support requirements.
Thickness	Nominal value and required measurement condition.
Areal weight	Target value and whether it refers to fiber or complete mat.
Cut dimensions	Width, length, shaped pattern and drawing revision.
Piece weight	Approved target or acceptable range where defined.
Assembly layout	Layer count, overlap, seam location and end clearance.
Operating conditions	Continuous and peak temperatures with measurement locations.
Commercial requirement	Sample quantity, production volume, packaging and labeling.

Send the silencer drawing or internal dimensions when the cut pattern still needs development. BSTFLEX can review drawing- and sample-based requirements through its OEM muffler packing manufacturing service.

Fiberglass Muffler Packing Mat Questions

Is a thicker fiberglass muffler packing mat always better?

No. Thickness alone does not define the quantity or acoustic performance of the packing. Compare material construction, areal weight, installed quantity and the available space inside the silencer.

What is the difference between fiberglass mat thickness and density?

Thickness is a linear dimension. Density relates mass to volume. Areal weight relates mass to area. Keep these measurements separate when comparing materials.

Can fiberglass muffler packing mats be custom cut?

BSTFLEX can discuss customized dimensions for suitable projects. Provide the cut size or drawing, material requirements, sample quantity and production demand so the cutting requirement can be reviewed.

Should a mat overlap around the muffler core?

Use the approved cutting and assembly specification. Some designs may use a defined overlap while others may use a butt joint or multiple pieces. Do not select overlap by a universal rule.

Can a fiberglass mat replace loose fill at the same weight?

Equal weight is only one comparison point. The fiber construction and installed distribution differ, so the proposed mat should be validated in the actual silencer before repeat production.

Request Custom Fiberglass Muffler Packing Mats

For a quotation, send BSTFLEX the required fiberglass grade, nominal thickness, areal weight where specified, cut dimensions and dry packing quantity. Include the muffler cross-section or internal dimensions if the cutting pattern still needs to be developed.

Start with the BSTFLEX Fiberglass Exhaust Muffler Packing or Fiberglass Exhaust Silencer Packing. Other muffler packing materials and supply formats are available when the assembly requires a different construction.

Request Fiberglass Muffler Packing Mat Samples and an OEM Quote
